Function: burn the Flash chip of the  Antminer, Whatsminer, Innosilicon, and Ebit control board.

RT809H programmer burner supports 24/25/93/95 series serial port SPIFLASH, EEPROM offline reading and writing, supports 26/27/28/29/30/39/49/50 series NOR FLASH/PROM reading and writing, supports LCD / LED flat-panel TV, display mainstream solution chip ISP online reading and writing. In the mining industry, it is mainly used to burn 29F2G08ABAEA Flash chip firmware, which is suitable for Antminer, Whatsminer, Innosilicon, Ebit, etc.

Accessories list:

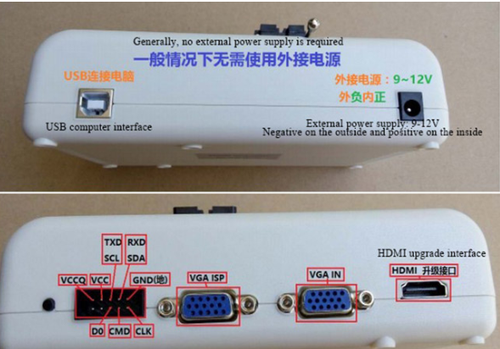

1: One host (USB port power supply)

2: One 48-foot simple board, one 8-16-foot simple seat

3: A USB2.0 cable connecting the programmer and the computer

4: Connect the programmer and the motherboard with a VGA cable
