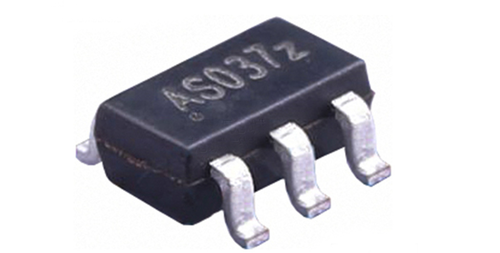

MT1470 is a fully integrated, high-efficiency 2A synchronous rectification step-down converter on the control board of the Antminer; MT1470 operates efficiently in a vast output current load range. In addition, the device offers two modes of operation, PWM control and PFM mode switching control for high efficiency over a wider load range, and it is packaged in a ROHS-compliant 6-pin SOT23 package.

Feature:

• High efficiency: up to 96%

• 500KHz frequency operation

• 2A output current

• No Schottky diode required

• 4.5V to 21V Input Voltage Range

• 0.8V reference

• Slope compensated current mode control for excellent line and load transient response

• Comprehensive internal compensation

• Low ESR ceramic output stability capacitor

• Overcurrent protection with hiccup mode

• thermal shutdown

• Inrush current limiting and soft start

• Available in SOT23-6 package

• -40°C to +85°C temperature range

Application:

• Distributed power system

• Digital set-top boxes

• Flat screen TV and monitor

• Wireless and DSL modems

• laptop

• Antminer control board
