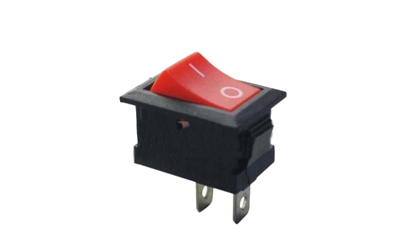

The KCD1 101 250V 6A Miniature Rocker Switch provides high switching current in a compact design. It is a snap-fit rocker switch with high mechanical life in a rugged nylon 66 housing. They are high quality for long life under heavy loads and industry-standard mounting dimensions. This switch can be used in various applications such as extension sockets, water dispensers, etc.

Product parameters:

Base: Nylon (PA) 66

Active Arm: Tinned Copper

Terminals: Tinned Copper

Rating: 6A 250V / 10A 125V

Dielectric Strength: 1500V for 1 minute

Insulation resistance: ≥100MΩ

Contact resistance: ≤30mΩ

Temperature range: -30~85℃

Life: ≥10000 times

Working temperature: -25℃~+85℃

Product features:

Contact feet: all copper contact feet, excellent electrical conductivity and high current resistance;

Shell: The shell is made of PA66, which is resistant to high temperature, high flame retardant, and durable;

Contact riveting point: It is treated with silver-plated copper, the instantaneous high current is OK, and the service life is longer.
